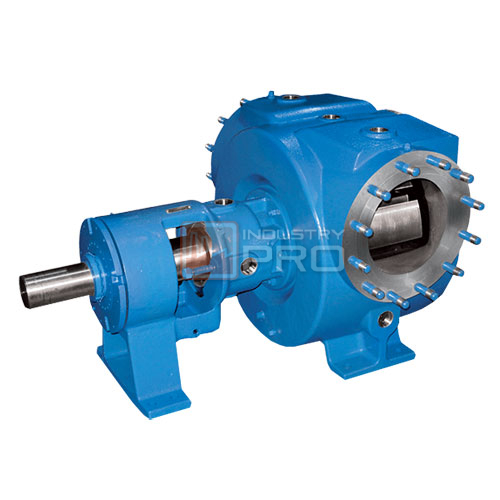

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Jacketed Universal Seal

Category ปั๊มเฟือง

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Jacketed Universal Seal

Jacketing options available for all critical areas of the pump provide rapid heating for faster startup.
Allows a variety of heating or cooling media including hot oil, steam and water.
Variety of jacket connection options including tapped and flange.
Fully-jacketed steel and stainless steel models offer proven uniform temperature control for improved product consistency.
Numerous porting positions, configurations and sizes provide enhanced application flexibility.

Materials of Construction	Size		Standard Port	Nominal Capacity At Maximum Speed		Maximum Speed	Maximum Pressure
Materials of Construction	Size		Inches	GPM	M3/Hr	RPM	PSI	BAR
CAST IRON – DUCTILE IRON – STEEL	H		1.5	15	3	1,750	200	14
	HL		1.5	30	7	1,750	200	14
	K		2	75	17	780	200	14
	KK		2	100	23	780	200	14
	L		2	135	31	640	200	14
	LQ		2.5	135	31	640	200	14
	LL		3	140	32	520	200	14
	LS		3	200	45	640	200	14
	Q		4	300	68	520	200	14
	M	①	4	420	95	420	200	14
	QS		6	500	114	520	200	14
	N		6	600	136	350	200	14
	R		8	1,100	250	280	200	14
	RS		10	1,600	365	280	125	8.5
	P	①	10	1,500	340	230	125	8.5
STAINLESS STEEL	H		1.5	10	2	1,150	150	10
	HL		1.5	20	5	1,150	150	10
	K		2	50	11	520	150	10
	KK		2	65	15	520	150	10
	LQ		2.5	90	21	420	150	10
	LL		3	110	25	420	150	10
	LS		3	160	36	520	125	8.5
	Q		4	200	45	350	125	8.5
	M	①	4	280	64	280	125	8.5
	QS		6	320	73	350	125	8.5
	N		6	600	136	350	200	14
	R		8	1,110	250	280	175	12
	RS		10	1,600	365	280	125	8.5

① Not a Universal Seal bracket design. Considered Heavy Duty design

Sealing / Coupling:

Packing, Component Mechanical Seals, Cartridge Mechanical Seals, Cartridge Triple Lip Seals, Sealless Mag Drive

Porting:

Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN), Custom

Mounting:

Foot Mount
