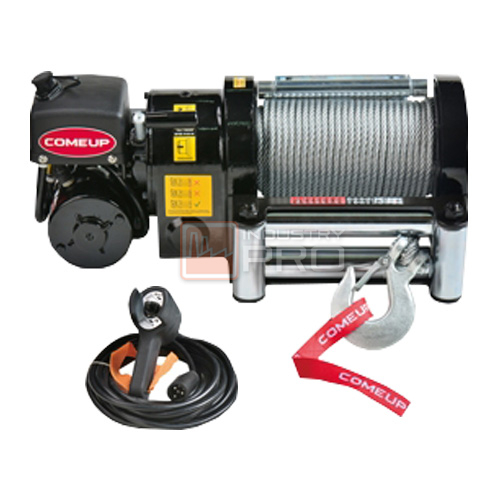

กว้านสลิงไฟฟ้า COME UP Electric Recovery Winch Wolf

กว้านสลิงไฟฟ้า COME UP Electric Recovery Winch Wolf

  • Robust, extreme heavy duty worm drive
  • Heavy duty series wound motor for high torque output and fast line speed under extreme operating condition.
  • Detachable weather-resistant control box mounted elsewhere on the vehicle.
  • 2 stages spur gears plus 1 exceptionally strong worm gear for reversing protection.
  • Irreversible worm gear brake as well as an auxiliary mechanism ratchet wheel brake performs instant braking and free slip.
  • Mechanism lever clutch for rapid wire rope payout.
  • Heavy duty sealed contactor gives better water resistance and lower amp. draw.
  • Higher D/d ratio (Drum dia./rope dia.) allows light commercial applications of car transporter, wrecker, tractor, lorry and fire/rescue engine.
  • Meet SAE J706, CE Machinery Directive 2006/42/EC.

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP Electric Recovery Winch Wolf

Specifications COME UP Wolf 8.5 COME UP Wolf 12.0
Part number PN 780254 (12V) / PN 780988 (24V)  PN 782478 (12V) / PN 783415 (24V)
Rated line pull 3,856 kg / 8,500 lb 5,443 kg / 12,000 lb
Motor  3,430 w / 4.6 hp 12V series wound 3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound 2,240 w / 3.0 hp 24V series wound
Gear train 2-stage spur gear PLUS worm gear 228.9:1 2-stage spur gear PLUS worm gear 424:1
Clutch (freespooling) Mechanism lever Mechanism lever
Brake Irreversible worm gear brake PLUS mechanism ratchets wheel brake Irreversible worm gear brake PLUS mechanism ratchets wheel brake
Drum size 82 x 229 mm (3.2” x 9″) 89 x 229 mm (3.5” x 9″)
Control Waterproof remote w/5 m (17′) cord Waterproof remote w/5 m (17′) cord
Rope type Galvanized aircraft A7 x 19 Galvanized aircraft A7 x 19
Rope size 8.0 mm x 45 m (5/16″ x 150′) 9.5 mm x 30.5 m (3/8″ x 100′)
Mounting bolts pattern 273 x 110 mm (10.7” x 4.3”) 273 x 110 mm (10.7” x 4.3”)
257 x 172 mm (10.1″ x 6.8″) 257 x 172 mm (10.1″ x 6.8″)
Winch weight 40 kg / 88.2 lb 41 kg / 90.4 lb
Gross weight  51 kg / 112.5 lb 51 kg / 112.5 lb
Box dimension, (L x D x H) 610 x 427 x 350 mm (24″ x 16.8″ x 13.8″) 610 x 427 x 350 mm (24″ x 16.8″ x 13.8″)
