กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch Bison Series

กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch Bison Series

Bison 20,Bison 30,Bison 50

Bison 20

  • The new mechanical MDB (Multi-Disc Brake) and two ways counterbalance valve together to control and hold the load.
  • Built-in air clutch for rapid wire rope payout.
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application.
  • Fast and variable recovery speeds for high working
  • Powerful and constant output hydraulic motor allows extreme duty performance
  • Meet SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches
  • Roller fairlead, cable tensioner and two ways counterbalance valve come as standard accessories.

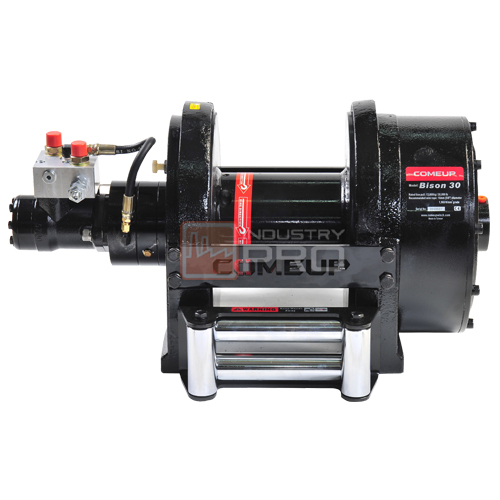

Bison 30

  • The new mechanical MDB (Multi-Disc Brake) and two ways counterbalance valve together to control and hold the load.
  • Built-in air clutch for rapid wire rope payout.
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application.
  • Fast and variable recovery speeds for high working
  • Powerful and constant output hydraulic motor allows extreme duty performance
  • Meet SAE J706 revised AUG2003 and CE specifications
  • Roller fairlead, cable tensioner and two ways counterbalance valve come as standard accessorie

Bison 50

  • Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
  • 251.8 cm3/rev highly efficient and constant operating torque motor with 22,680 kg / 50,000 lb capacity
  • Hardened 2 stage planetary gear train with 44:1 gear ratio provides faster line speed
  • Built-in air clutch for rapid wire rope payout
  • The Multi-Disc Brake ( MDB ) patented for holding full load
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application
  • Roller fairlead, cable tensioner and two ways counterbalance valve supplied
  • Meet SAE J706 , CE machinery directive 2006/42/EC

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch Bison Series

Specifications COME UP Bison 20 COME UP Bison 30 COME UP Bison 50
Part number PN 682030 (Std. drum)  / PN 682169 (Long drum) PN 683030 (Std. drum)  / PN 683352 (Long drum) PN 685010 (Std. drum)
Rated line pull 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating) 13,600 kg / 30,000 lb (SAE J706 rating) 22,680 kg / 50,000 lb (SAE J706 rating)
Line speed ( 1st layer) 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min) 5 mpm at 60 l/min (16 fpm at 15.9 g/min) 5.7 mpm at 100 l/min (19 fpm at 26.5 g/min)
Operation pressure 175 bar / 2,540 psi 175 bar / 2,540 psi 200 bar / 2,900 psi
Max oil flow 60 l/min (15.9 g/min) 60 l/min (15.9 g/min) 100 l/min (26.5 g/min)
Hydraulic motor 155.7 cm3/rev (9.5 in3/rev) 155.7 cm3/rev (9.5 in3/rev) 251.8 cm3/rev (15.4 in3/rev)
Gear ratio 2-stage planetary gear 30:1 2-stage planetary gear 41:1 2-stage planetary gear 44:1
Winch construction Cast housings with steel drum Cast housings with steel drum  Cast housings with steel drum
Clutch (Freespooling) Output shaft disengaged Output shaft disengaged Output shaft disengaged
Brake Multi-Disc Brake (MDB) patented and counterbalance valve supplied Multi-Disc Brake (MDB) patented and counterbalance valve supplied Multi-Disc Brake (MDB) patented and counterbalance valve supplied
Rotation of winch  Wire rope shall be under-wound orientation only Wire rope shall be under-wound orientation only Wire rope shall be under-wound orientation only
Drum barrel diameter 146 mm (5.8″) 152.5 mm (6″) 180 mm (7.1″)
Drum flange diameter 203 mm (8″) – Std. drum 343 mm (13.5”) 406 mm (16”)
Distance between flanges 355.6 mm (14″) – Long drum 203 mm (8″) – Std. drum 368 mm (14.5″)
355.6 mm (14″) – Long drum
Mounting bolts pattern 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum 240 x 453 mm (13.4” x 17.8”) ; 340 x 453 mm (13.4” x 17.8″)
190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mmc (10.5” x 18”) – Long drum 190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mm (10.5” x 18”) – Long drum
Wire rope recommended 14 mm x 43 m (9/16” x 141’) – Std. drum 16 mm x 43 m ( 5/8” x 141’) – Std. drum 22.4 mm x 48 m (7/8” x 157’) 1,770 N/mm2 breaking strength of 305 kN required for SAE J706 ratings
14 mm x 80 m (9/16” x 262’ ) – Long drum
1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 ratings 16 mm x 75 m ( 5/8” x 246’ ) – Long drum
16 mm x 30 m (5/8” x 98’) – Std. drum
16 mm x 55 m (5/8” x 180’ ) – Long drum 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 ratings
1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for EN 14492-1 ratings
Winch weight 135 kg / 298 lb – Std. drum 175 kg / 386 lb – Std. drum 394 kg / 869 lb
150 kg / 331 lb – Long drum 197 kg / 434 lb – Long drum
Gross weight 165 kg / 364 lb – Std drum 198 kg / 437 lb – Std drum 445 kg / 981 lb
195 kg / 430 lb – Long drum 235 kg / 518 lb – Long drum
Box dimension, (L x D x H) 870 x 500 x 510 mm (34.3″ x 19.7″ x 20.1″)  – Std. drum  900 x 510 x 530 mm (35.4″ x 20.1″ x 20.9″)  – Std. drum 1,260 x 790 x 630 mm (49.6″ x 31.1″ x 24.8″)
1,025 x 500 x 510 mm (40.4″ x 19.7″ x 20.1″) – Long drum 1,040 x 620 x 510 mm (40.9″ x 24.4″ x 20.1″) – Long drum
