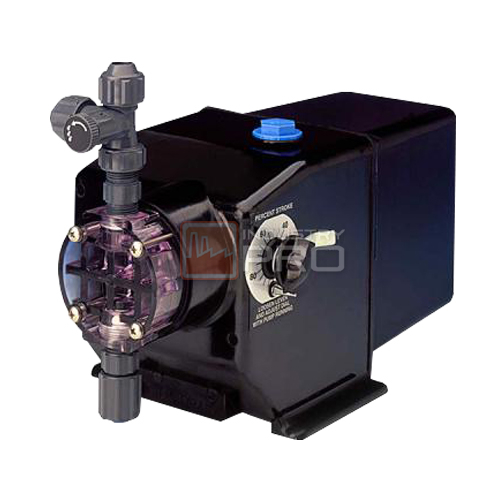

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSAFEEDER Chem-Tech 200-250 Series

The Chem-Tech Series 200 and 250 are mechanically activated, heavy duty diaphragm feed pumps that provide excellent efficiency under strenuous conditions. The Series 200 pumps are popular for their rugged design for continuous duty operation, while the Series 250 combines the power and repeatability of piston pumps with the chemical resistance of diaphragm pumps for high pressure applications.
The Series 200 offers feed rates from 10 to 120 gpd (1.5 to 18.9 lph) and operating pressures up to 150 psi (10.3 bar), while the Series 250 offers feed rates to 108 gpd (17 lph) and operating pressures up to 225 psi (15.5 bar).

ปั๊มจ่ายสารเคมี PULSAFEEDER Chem-Tech 200-250 Series

FEATURES

  • Bleed valve assembly standard
  • Feed rate control
  • Heavy duty fan cooled motor with thermal overload protection
  • High torque motor gear coupling – Ensures start up under maximum pressure

SPECIFICATIONS

Pump Head Materials Series 200: Clear PVC, PVC, PP, 316 SS
Fitting Material Available Series 200: GFPPL, PVC, PVDF
Bleed Valve Same as fitting and check valve selected (except 316SS)
Seat O-Rings Available Series 200: PTFE, CSPE, Viton
Balls Available Series 200: Ceramic, PTFE, 316 SS
Diaphragms Series 200: PTFE-faced CSPE-backed, Series 250: PTFE Coated
Ball Checks Available Series 250: Ceramic, PTFE, 316 SS
Gaskets Series 250: PTFE
Tubing Available Series 200: Clear PVC, White PE, Black PE
Suction Tubing Series 250: Suction – Flexible PVC, .44 NPT Connections
Discharge Tubing Series 250: Polyethylene, .50 NPT Connection
Power Input 115 VAC – 60 HZ – 0.8A, 230 VAC – 50/60 HZ 0.4A
Pump Head Materials Available 2 Series 250: PVC, 316 SS
Fittings Material Available 2 Series 250: PVC, 316 SS
Accessories Dampeners
Gauges
KOP Kits
Pre-Engineered Feed Systems
Process Controllers
Tanks



ขอใบเสนอราคา/Request a quote
