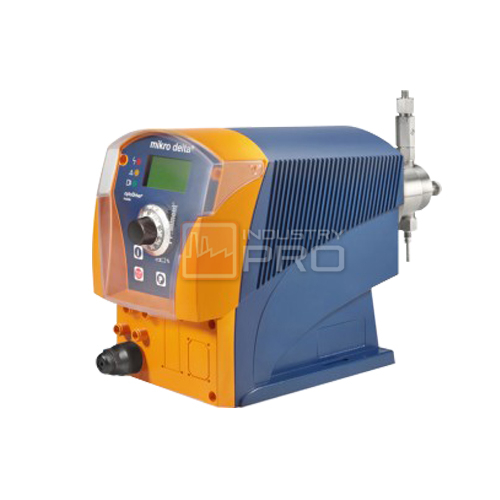

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PROMINENT delta(R)

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PROMINENT delta(R) อัตราจ่ายสาร 7.5 – 75 ลิตร/ชม., 25-2 บาร์ delta (R) เป็นปั๊มประเภทโซลีนอยด์ที่ใช้ เทคโนโลยี optoDrive(R) ในการทำงาน สามารถควบคุมสโตรคการสูบและจ่ายเคมีได้อย่างแม่นยำ นอกจากนี้ยังมีเทคโนโลยี optoGuard(R) ที่ช่วยเฝ้าระวังในเรื่องความปลอดภัยในระหว่างการทำงานของปั๊มหากเกิดปัญหา air block , ท่อแตก, over pressure เป็นต้น

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PROMINENT delta(R)

The delta® pump is the first pump worldwide with controlled solenoid drive. The suction and pressure strokes are fully monitored and can be adapted to the individual application. The delta pump is equipped for almost any application thanks to numerous drive options as
well as the connection via Profibus® or CANbus to the central control station. The pump is equipped with the option “Process Timer” and thus can be used as control centre in cases where otherwise programmable logic controllers would be required.

Applications

  • Highly automated processes, in particular also filling processes in all industries
  • Processes where continuous metering is required such as e.g. metering of antiscalants in diaphragm engineering (smallest continuous metering volume approx. 12 ml/h)
  • Metering of outgassing and high­viscosity media

Features

  • Continuous or pulsating dosing
  • Programmable suction and delivery stroke duration
  • Pump can be adapted to the dosing media Integrated injection control optoGuard® detects blocked dosing points, broken dosing lines and air or gas bubbles trapped in the dosing head
  • Capacity range 7,5 ­ 75 l/h, 25 ­2 bar
  • Stroke length continuously adjustable from 0 ­ 100% (recommended range 30 ­ 100%) Acrylic glass, PVDF and stainless steel material versions
  • Patented coarse/fine ventilation
  • Detection and indication of diaphragm failure (optional)
  • Adjustment and display of pump delivery from the keypad with choice of display in l/h or strokes/min
  • Large backlit graphic display
  • External control options via volt­free contacts with optional increase/reduce speed pulse
  • Optional external control via standard 0/4­20 mA signal Interfaces for PROFIBUS® or CANopen
  • 14­day process timer option* for time and event­dependent dosing duties
  • Connection for 2­stage level switch
  • 3 LED displays for operation and warning and error message in plain text
  • Optional concentration input for volume­proportional dosing
Pump type delta bar I/h Strokes/min Suction lift mWG Connector Dimension outer Ø x inner Ø mm
DLTA 2508 25 7,5 200 5 8 x 4
DLTA 1612 16 11,3 200 6 8 x 5
DLTA 1020 10 19,3 200 5 12 x 9
DLTA 0730 7 29,2 200 5 12 x 9
