รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECTE4 Series

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECTE4 Series

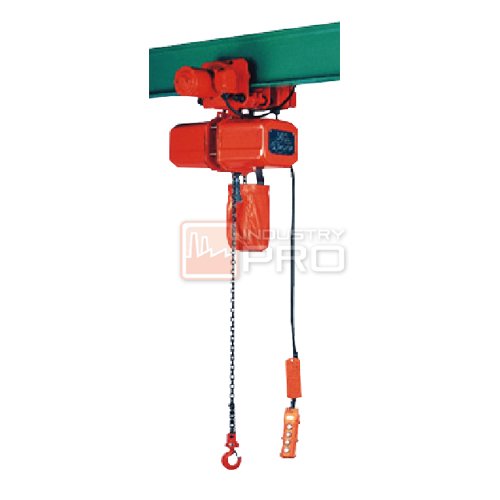

  • This two-speed electric hoist with an electric trolley can be moved upward, downward, or in a traversing direction via a four-button switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 1 m. Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing
Speed
m/sec (m/min)
Motor output
(kW)
Rated time
(min)
50Hz 60Hz
ECTE40025 250kg 3 0.333 0.4 0.2 30
6 (20) (24)
ECTE40050 500kg 3
6
ECTJE40100 1tw 3
6
ECTE40100 1t 3
6
ECTJE40200 2t 3 0.4
6



Item no. Traversing rail width (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm) Net weight* (kg)
ECTE40025 75 1 1 3 495 65
100 6 69
ECTE40050 125 3 530 68
6 71
ECTJE40100 3 660 74
6 79
ECTE40100 3 565 81
6 86
ECTJE40200 100 3 780 112
125
150 6 119
