รอกโซ่ไฟฟ้า COME UP CK Series

รอกโซ่ไฟฟ้า COME UP ELECTRIC CHAIN HOIST CK Series

  • Permanent magnetic motor features constant output and low noise level.
  • Lightweight and compact designs are ideal for easy installation.
  • Dual brakes for double mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
  • Safety slipping clutch prevents hook becoming trapped into the hoist in the “up” direction
  • Power cutoff switch prevent the overloading of the hoist
  • Tough aluminum die cast housing provides massive structural durability.
  • Can operate on standard domestic power supply and equip with industrial plug
  • A switch w/emergency stop comes as standard
  • A 360° bottom hook fitted with a self-locking latch has a bearing is capable of swiveling with the safe working load applied
  • Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2004/108/EC, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASTM/ANSI B30.



SPECIFICATIONS

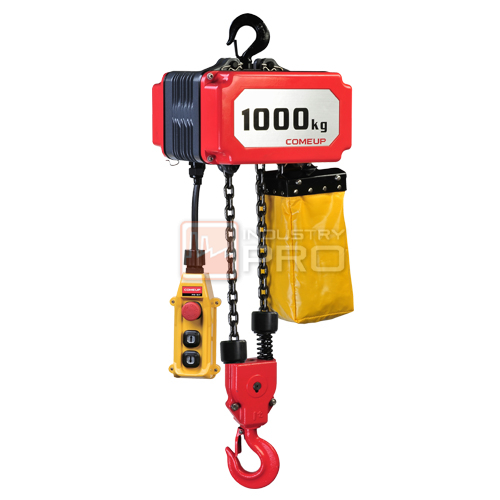

Model COME UP CK-500 COME UP CK-1000
Duty Cycle 25% ED at 63% of rated load 25% ED at 63% of rated load
Drive Group FEM: 9,511 1Bm, ISO: 4301-1 M3 FEM: 9,511 1Bm, ISO: 4301-1 M3
Voltage 100 – 120V, 200 – 240V AC, single phase 100 – 120V, 200 – 240V AC, single phase
Lifting Load, kg 500 1,000
Lifting Height 3 M 6 M 3 M 6 M
Type of Fall Single Double
Motor Output 100 – 120 V / 750w, 9.5A permanent magnetic 100 – 120 V / 750w, 9.5A permanent magnetic
200 – 240 V / 750w, 4.5A permanent magnetic 200 – 240 V / 750w, 4.5A permanent magnetic
Line Speed 6.5 m/min 3.2 m/min
Brake Dual brakes of double mechanical ratchet pawls and motor dynamic brake Dual brakes of double mechanical ratchet pawls and motor dynamic brake
Gear Ratio 70.2 :1 70.2 :1
Load Chain  Grade 80– Links 6.3 mm dia. x 19 mm long  Grade 80– Links 6.3 mm dia. x 19 mm long
Hoist weight 19.3 kg 19.3 kg
Gross weight 27 kg 32 kg
Box dimension   380 x 410 x 345 mm   380 x 410 x 345 mm
