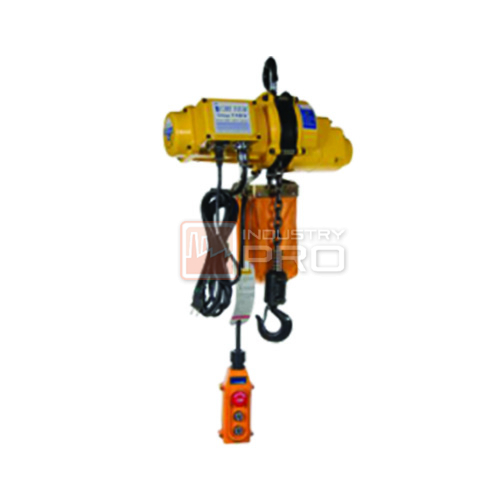

รอกโซ่ไฟฟ้า CHIYEAH รุ่น CH Series

รอกโซ่ไฟฟ้า CHIYEAH รุ่น CH Series



FEATURES

  • The body is shortest distance for chain electric.
  • The special clutch can be cutted when it load over weight.
  • The chain is an alloy steel, it is imported,it is strongest and endureing, the safe coefficient is over 6.
  • The strong brake is accurate and safe, the structure of subject is simple, it is easy to assemble and take down, the rate of breakdown is lowest
  • Hanger can be revolved by 360 degree, and has the safe botton of avoid to dropping
  • Comes complete with 4.5 m pendant control
  • Comes complete with 6 m power lead and industrial plug



SPECIFICATIONS

Model Lifting Capacity (top layer) Lifting Speed m/min Motor Output 110V kw x A Motor Output 220-240V kw x A Braking Methods For gear Brake Lifting Height m Chain Percentage Duty Cycle
CHIYEAH CH-300 300 kg 10 1.4 x 8 1.4 x 4 series wound mechanical ratchet 5 6.3 mm 30 % ED
CHIYEAH CH-500 500 kg 6 1.4 x 10 1.4 x 6 series wound mechanical ratchet 3 6.3 mm 30 % ED
CHIYEAH CH-1000 1000 kg 3 1.4 x 10 1.4 x 6 series wound mechanical ratchet 3 6.3 mm 30 % ED



WARNING

Winches are not to be used for the moving of persons

WARRANTY

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase



OPTIONAL ACCESSORIES

‧Remote control K-613A

Model STANDARD ACCESSORIES PACKAGE
CHIYEAH CH-300        – Pendant control K613        – Winch Weight : 22 kg
– Gross Weight : 26 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH CH-500        – Pendant control K613        – Winch Weight : 20 kg
– Gross Weight : 24 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH CH-1000        – Pendant control K613        – Winch Weight : 24 kg
– Gross Weight : 28 kg
– Box Dimension : 500 x 250 x360 mm
