รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECTP4 Series

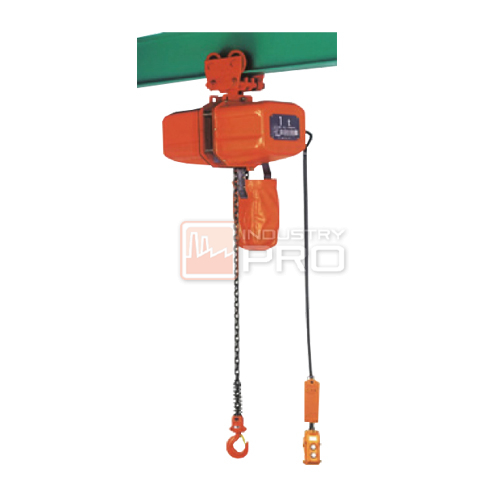

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECTP4 Series



  • This two-speed electric chain hoist with a plain trolley can be moved upward and downward via a two-button switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing rail width (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm) Hook mass (kg) Net weight* (kg)
ECTP40025 250kg 3 75 1 5 2.6 475 0.7 44
6 100 5.6 48
ECTP40050 500kg 3 125 2.6 510 47
6 5.6 49
ECTJP40100 1tw 3 2.6 640 2.4 53
6 5.6 57
ECTP40100 1t 3 2.6 550 0.9 60
6 5.6 65
ECTJP40200 2t 3 100 1.2 2.6 765 5 78
125
6 150 5.6 85
