รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECTET4 Series

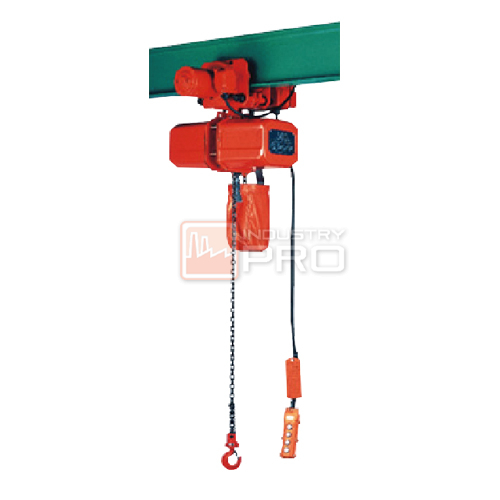

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECTET4 Series



  • This two-speed electric chain hoist with a two-speed electric trolley can be moved upward, downward, or in a traversing direction via a four-button switch.
  • A six-button switch is used when combining the hoist with a motorized crane (traveling type).
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 1 m. Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing Traversing rail width b (mm)
Speed
m/sec(m/min)
Motor output (kW) Rated time (min)
High Low High Low
50Hz 60Hz 50Hz 60Hz
ECTET40025 250kg 3 0.333 0.4 0.108 0.133 0.2 0.07 15 75
6 -20 -24 -6.5 -8 100
ECTET40050 500kg 3 125
6
ECTJET40100 1tw 3
6
ECTET40100 1t 3
6
ECTJET40200 2t 3 0.4 0.14 100
125
6 150



Item no. Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm) Net weight* (kg) External dimensions (mm)
A B D E
ECTET40025 1 1 3 495 78 245 245 122 149
6 82
ECTET40050 3 530 81
6 85
ECTJET40100 3 660 87 153 118
6 93
ECTET40100 3 565 94 255 255 135 168
6 98
ECTJET40200 3 780 129 176 127
6 136

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
  • Please refer to the specifications for the ECT4 for items related to hoisting.
  • The push-button switch cord length and the hook mass are identical to those of the ECE4.
