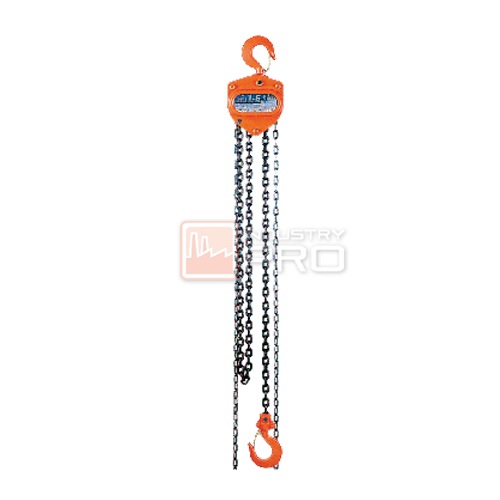

รอกโซ่มือสาว Manual Chain Hoist NICHI HE-50A Series

Manual Chain Hoists NICHI HE-50A Series



Features

  • Affordable chain hoist based on the H-50A heavy-duty chain hoist.
  • Tough load chains offer dependable performance for a safe work environment.



SPECIFICATIONS

Item no. Rated load (t) Standard lift (m) Pulling effort (N) Min. headroom G (mm) Net weight (kg) Test load (t)
HE5005A 0.5 2.5 245 260 8 0.75
HE5010A 1 265 300 10.5 1.5
HE5015A 1.6 324 345 15 2.4
HE5020A 2 3 392 380 21 3
HE5030A 3.2 353 530 24.5 4.8



Item no. External dimensions (mm)
A B C D E F1 F2 n
HE5005A 82 56 100 90 48 24 36 2500
HE5010A 84 66 110 100 59 29 43 2500
HE5015A 91 77 120 115 69 33 48 2500
HE5020A 99 88 125 132 82 35 52 3000
HE5030A 91 77 160 160 60 40 60 3000

Notes:

  • Other Chain lengths are also available.
  • Specifications are subject to change for improvements without notice.
  • The figures for test load are the mass of the loads used in performance tests prescribed under JIS B8802.
