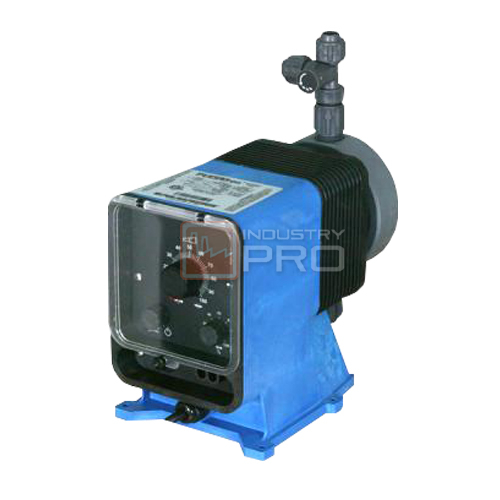

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSAFEEDER PULSAtron E Plus Series

The Pulsation Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Twenty distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 600 gpd (94.6 lph) @ 30 psi (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.

ปั๊มจ่ายสารเคมี PULSAFEEDER PULSAtron E Plus Series

FEATURES

  • Automatic control available with 4-20mADC direct or external pacing with stop function
  • Manual control by on-line adjustable stroke rate and stroke length
  • Auto-Off-manual switch
  • Highly reliable timing circuit
  • Circuit protection against voltage and current upsets
  • Panel mounted fuse
  • Solenoid protection by thermal overload with auto-reset
  • Water resistant for outdoor and indoor applications
  • Indicator lights panel mounted
  • Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
  • Safe and easy priming with durable leak-free bleed valve assembly (standard)

SPECIFICATIONS

Pump Head Materials GFPPL, PVC, PVDF, 316 SS
Fitting Material Available GFPPL, PVC, PVDF
Bleed Valve Same as fitting and check valve selected (except 316SS)
Turndown Ratio 100:1
Seat O-Rings Available PTFE, CSPE, Viton
Balls Available Ceramic, PTFE, 316 SS, Alloy C
Diaphragms PTFE-faced CSPE-backed
Tubing Available Clear PVC, White PE, PVDF
Power Input 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph
Peak Input Power 300 Watts, Average Input Power At Max SPM: 130 Watts
Average Current Draw 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5
Product Options Optional Control: 4-20mADC direct or external pacing with stop function
Accessories Dampeners
Gauges
KOP Kits
Pre-Engineered Systems
Process Controllers
Tanks
